CH60B-19FC#212F

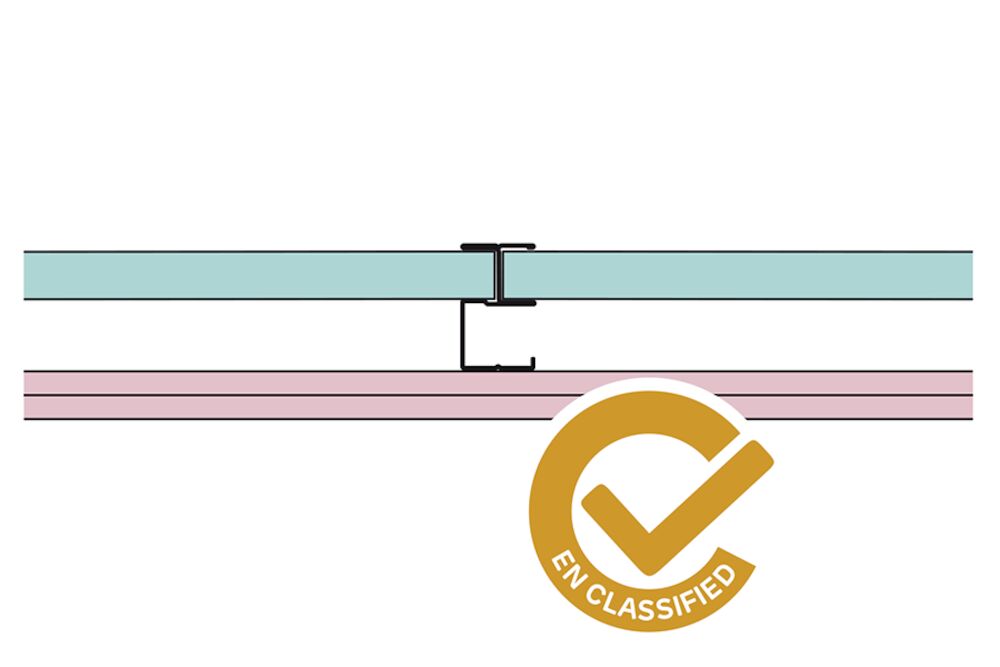

1 x 19 mm Siniat Fire Core Board, Siniat CHS60/B CH-Studs at 600mm centres, 2 x 12.5 mm Siniat Fire Board

CH60B-19FC#212F

Further Information

Benefits:

  • Siniat Shaftwall range uses a specially designed system to protect voids and shafts in buildings
  • Enables installation from one side of the shaft only.
System Name: CH60B-19FC#212F
Acoustic Performance: 43 dB
Nominal Thickness: 85 mm
Cold state maximum height: 4.8 m
System weight: 39 kg/m²
Fire State Max Height: 3 m
Fire Resistance (EN 1364-1): 60 min
Duty rating: Severe
