Twin(AB)-CS50R-215Un-50G(200)

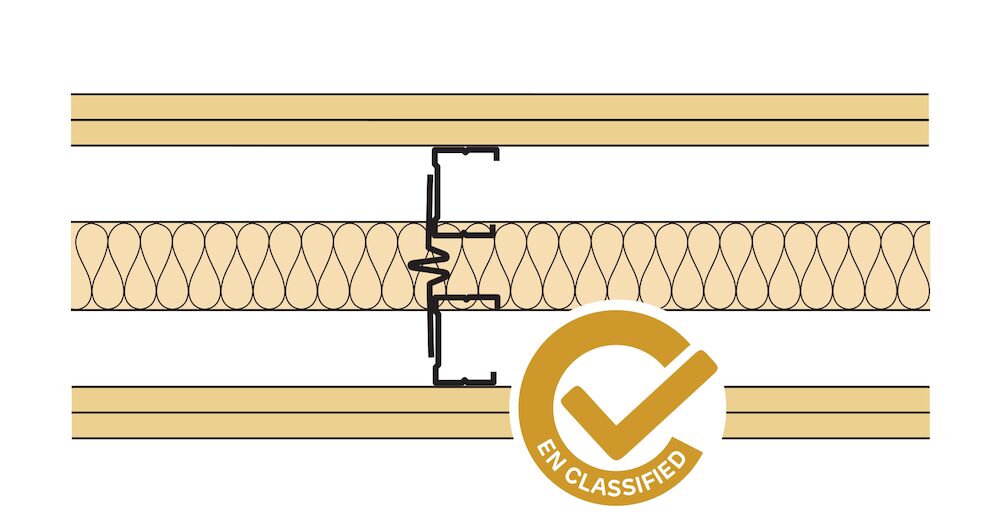

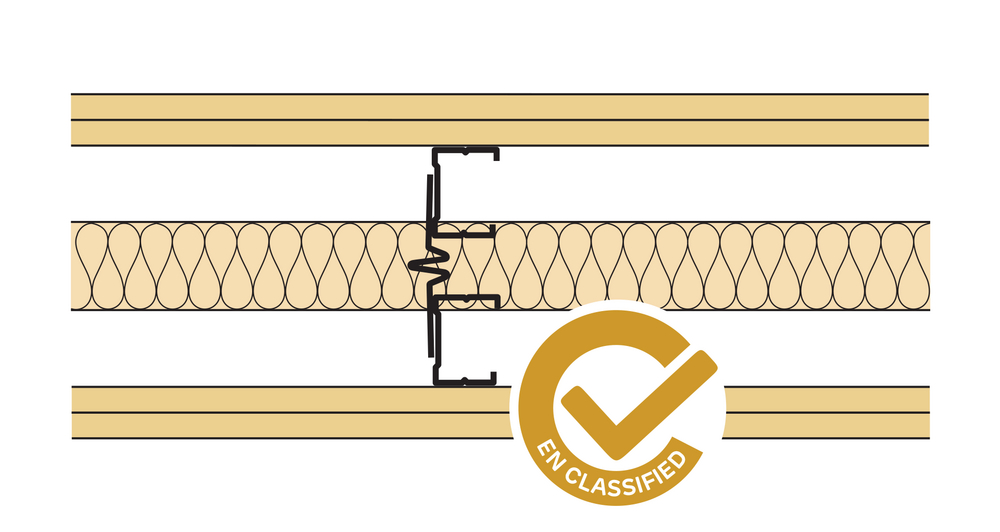

2 x 15mm Siniat Universal Boards, Twin Siniat CS50/Rx C-Studs at 600mm centres with Acoustic Brace, 50mm glass mineral wool, 2 x 15mm Siniat Universal Boards
Further Information
System name:
Twin(AB)-CS50R-215Un-50G(200)
Acoustic insulation (Rw dB):
63 dB
Nominal thickness:
200 mm
Cold state max. height:
5.3 m
System weight:
54 kg/m²
EN Fire State Max Height:
4 m
Fire resistance (EN 1364-1):
120 min
(Rw+Ctr):
55 dB
Duty rating:
Severe
