RAS70P-15Un15dB-50G

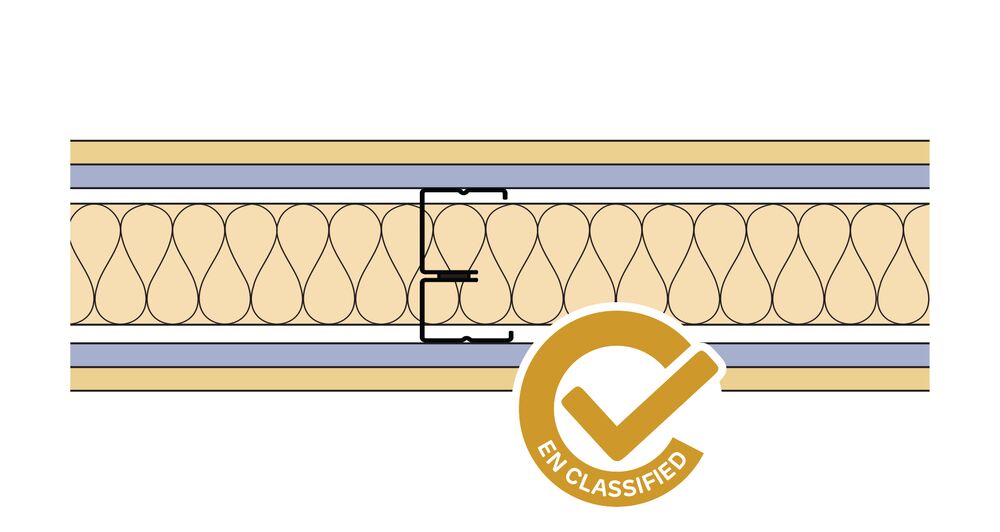

1 x 15mm Siniat Universal Board, 1 x 15mm Siniat dB Board, Siniat RAS70/P Resilient Acoustic Stud at 600mm centres, 50mm glass mineral wool, 1 x 15mm Siniat dB Board, 1 x 15mm Siniat Universal Board
Further Information
System name:
RAS70P-15Un15dB-50G
Acoustic insulation (Rw dB):
58 dB
Nominal thickness:
130 mm
Cold state max. height:
3.9 m
System weight:
52.98 kg/m²
EN Fire State Max Height:
3.9 m
Fire resistance (EN 1364-1):
120 min
(Rw+Ctr):
50 dB
Duty rating:
Severe
