CS90R-15Md15dB-25G

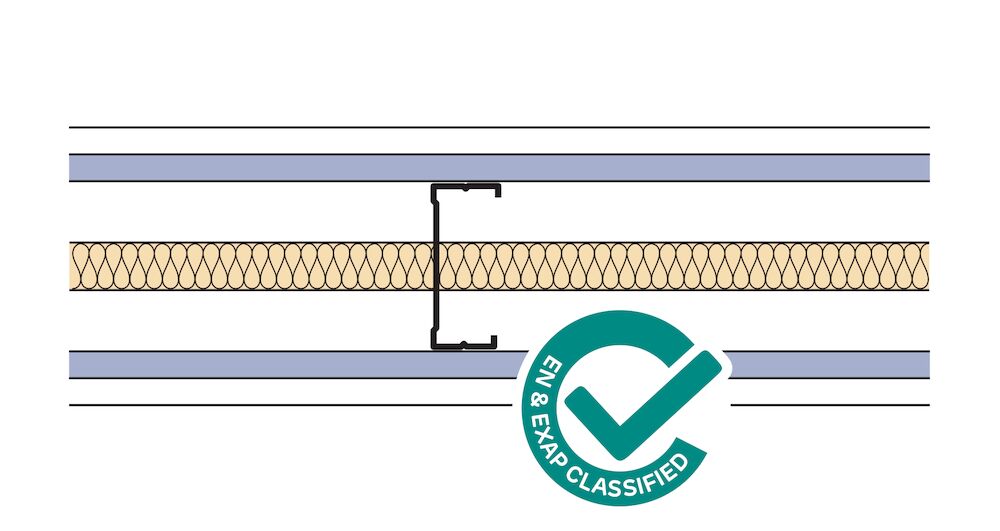

1 x 15mm Siniat Megadeco Board, 1 x 15mm Siniat dB Board, Siniat CS90/Rx C-Stud at 600mm centres, 25mm glass mineral wool, 1 x 15mm Siniat dB Board, 1 x 15mm Siniat Megadeco Board
Further Information
System name:
CS90R-15Md15dB-25G
Acoustic insulation (Rw dB):
58 dB
Nominal thickness:
150 mm
Cold state max. height:
6.6 m
System weight:
54 kg/m²
EN Fire State Max Height:
4 m
Fire resistance (EN 1364-1):
120 min
(Rw+Ctr):
50 dB
Duty rating:
Severe
