CS70R-215Un12Ply-25G

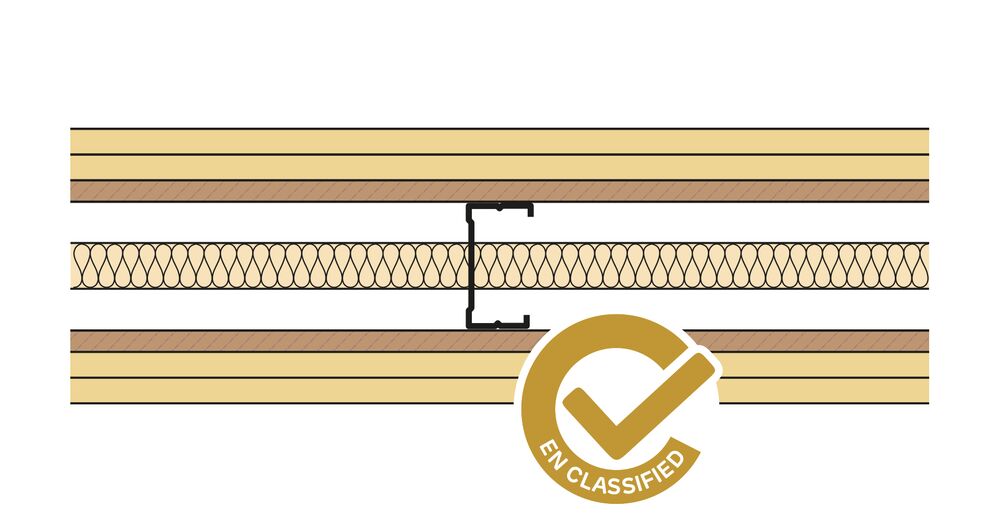

2 x 15mm Siniat Universal Boards, 1 x 12mm Plywood, Siniat CS70/Rx C-Stud at 600mm centres, 25mm glass mineral wool, 1 x 12mm Plywood, 2 x 15mm Siniat Universal Boards
Further Information
System name:
CS70R-215Un12Ply-25G
Acoustic insulation (Rw dB):
59 dB
Nominal thickness:
130 mm
Cold state max. height:
5.25 m
System weight:
68 kg/m²
EN Fire State Max Height:
4 m
Fire resistance (EN 1364-1):
120 min
(Rw+Ctr):
52 dB
Duty rating:
Severe
