CS70R-15Un15dB-25G

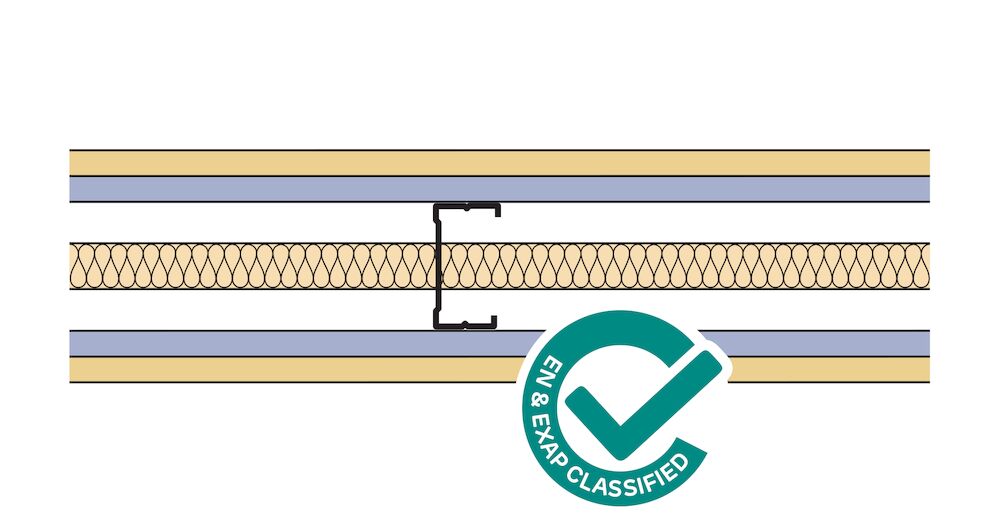

1 x 15mm Siniat Universal Board, 1 x 15mm Siniat dB Board, Siniat CS70/Rx C-Stud at 600mm centres, 25mm glass mineral wool, 1 x 15mm Siniat dB Board, 1 x 15mm Siniat Universal Board
Further Information
System name:
CS70R-15Un15dB-25G
Acoustic insulation (Rw dB):
57 dB
Nominal thickness:
130 mm
Cold state max. height:
5.25 m
System weight:
54 kg/m²
EN Fire State Max Height:
4 m
Fire resistance (EN 1364-1):
120 min
Duty rating:
Severe
