ST PXS-005S-15

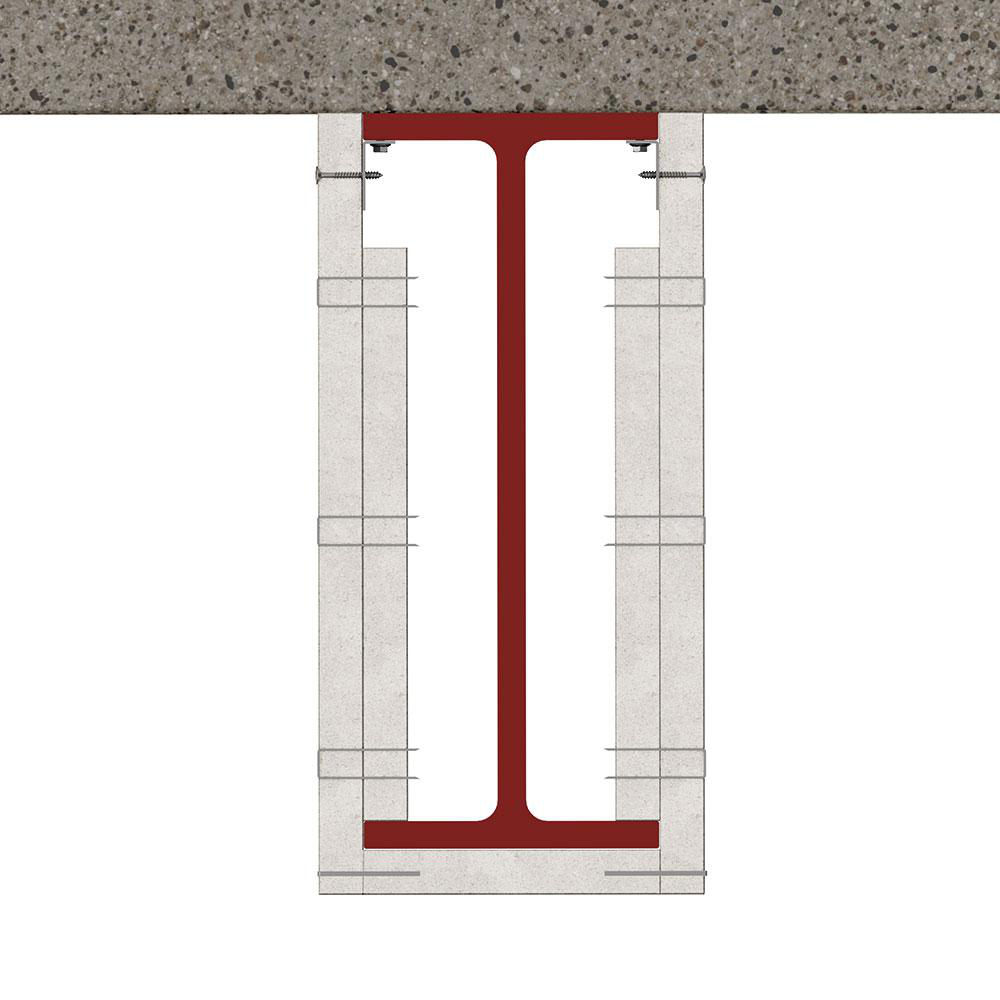

3 sided beam encasement single layer up to 600mm deep. Board fixed to angle.
Further Information
Fire Performance to EN 13381-4-(up to):
60 minutes
Max Steel Section Factor:
200 A/V
Number Of Sides Exposed:
3
Applications:
- For the protection of hot-rolled structural steel
- Suitable for internal and unheated spaces
Benefits:
- EN classification covering a wide scope of application
- Can be easily decorated if required
- Limiting steel temperatures ranging from 300°C to 700°C
- Board to board fixing, for faster installation whilst maximising useable space in the building
