Twin(AB)-CS90W-215dB-100G(300)

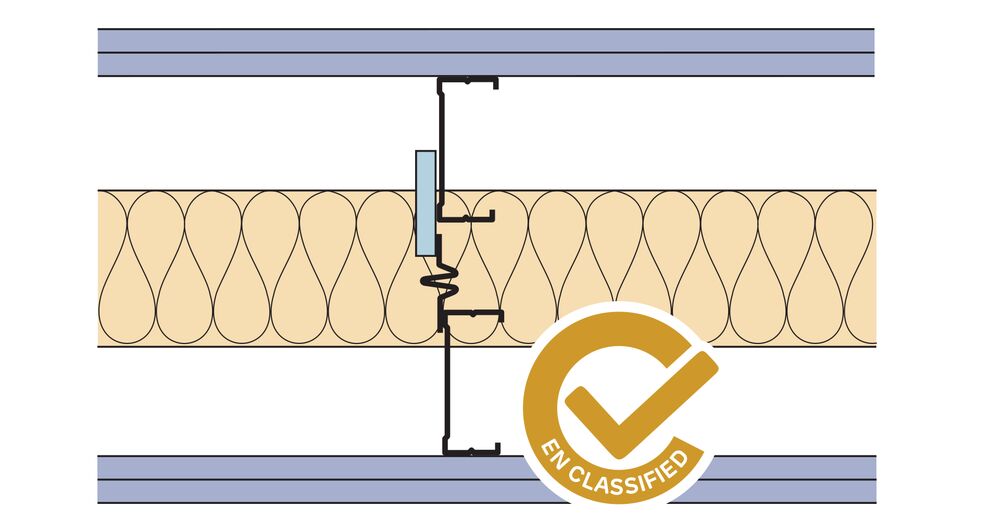

2 x 15mm Siniat dB Boards, Twin Siniat CS90/W C-Studs at 600mm centres with Extended Acoustic Brace, 100mm glass mineral wool, 2 x 15mm Siniat dB Boards
Further Information
System name:
Twin(AB)-CS90W-215dB-100G(300)
Acoustic insulation (Rw dB):
65 dB
Nominal thickness:
300 mm
Cold state max. height:
8.8 m
System weight:
57 kg/m²
EN Fire State Max Height:
6 m
Fire resistance (EN 1364-1):
90 min
(Rw+Ctr):
59 dB
Duty rating:
Severe
