Twin(AB)-CS50R-215dB-25G(200)

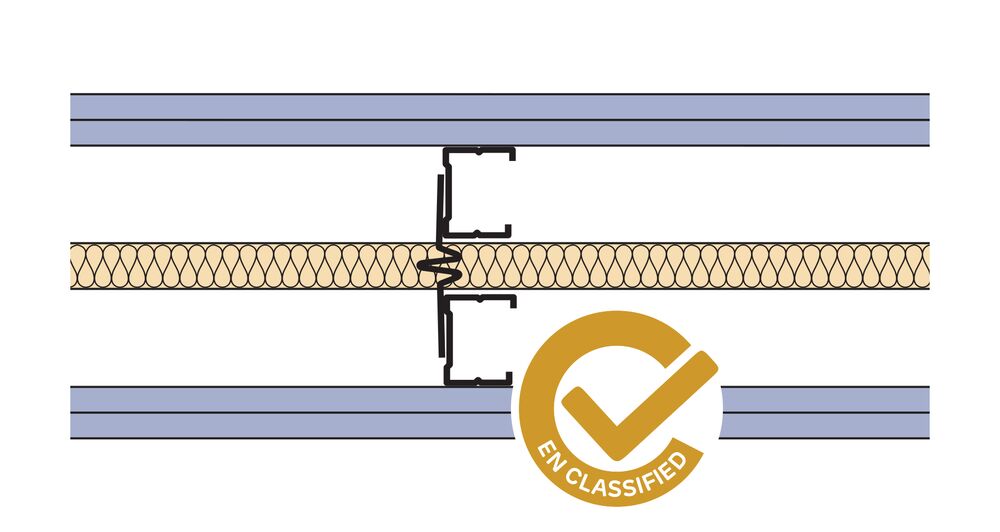

2 x 15mm Siniat dB Boards, Twin Siniat CS50/Rx C-Studs at 600mm centres with Acoustic Brace, 25mm glass mineral wool, 2 x 15mm Siniat db Board
Further Information
System name:
Twin(AB)-CS50R-215dB-25G(200)
Acoustic insulation (Rw dB):
61 dB
Nominal thickness:
200 mm
Cold state max. height:
5.3 m
EN Fire State Max Height:
4 m
Fire resistance (EN 1364-1):
90 min
(Rw+Ctr):
53 dB
Duty rating:
Severe
