Twin(AB)-CS50R-15Un12Ply-25G(194)

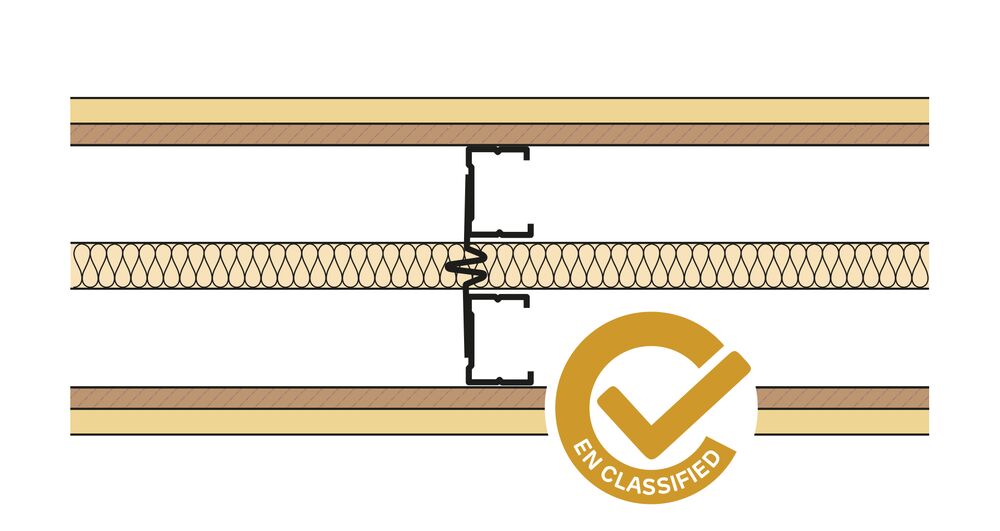

1 x 15mm Siniat Universal Board, 1 x 12mm Plywood, Twin Siniat CS70/Rx C-Stud at 600mm centres, 25mm glass mineral wool, 1 x 12mm Plywood, 1 x 15mm Siniat Universal Board
Further Information
System name:
Twin(AB)-CS50R-15Un12Ply-25G(194)
Acoustic insulation (Rw dB):
56 dB
Nominal thickness:
194 mm
Cold state max. height:
4.4 m
System weight:
42 kg/m²
EN Fire State Max Height:
4 m
Fire resistance (EN 1364-1):
60 min
Duty rating:
Severe
