CS14Y-12Un12dB

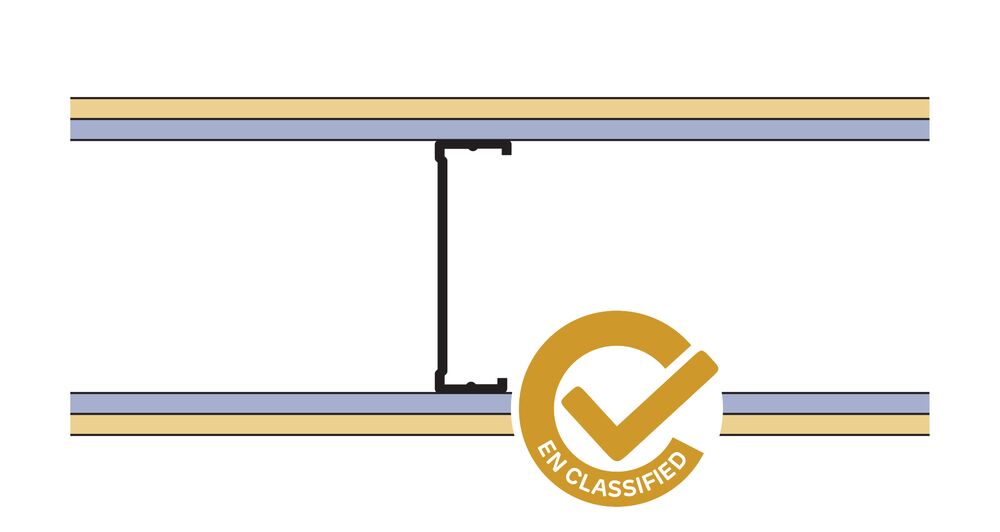

1 x 12.5mm Siniat Universal Board, 1 x 12.5mm Siniat dB Board, Siniat CS146/Y C-Stud at 600mm centres, 1 x 12.5mm Siniat dB Board, 1 x 12.5mm Siniat Universal Board
Further Information
System name:
CS14Y-12Un12dB
Acoustic insulation (Rw dB):
53 dB
Nominal thickness:
196 mm
Cold state max. height:
9.5 m
System weight:
47.43 kg/m²
EN Fire State Max Height:
9.5 m
Fire resistance (EN 1364-1):
90 min
Duty rating:
Severe
