Direct-to-Timber System RTC 017

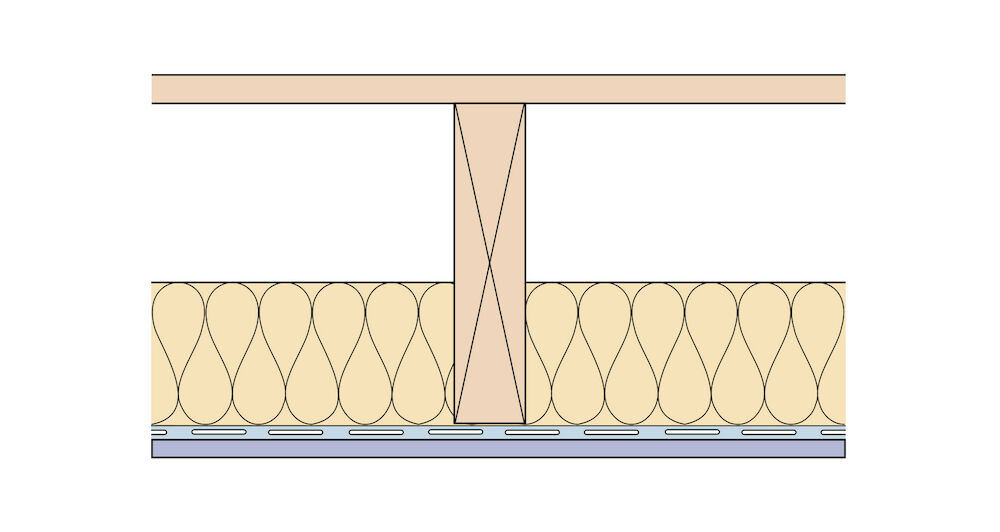

1x 12.5mm GTEC E Board,Single GTEC Resilient Bar at max. 450mm centres,100mm 10.5kg/m3 glass mineral wool,47mm x 200mm joists at 600mm centres,22mm tongue and grooved chipboard

Direct-to-Timber System RTC 017

Further Information

Thickness: 252 mm
System weight: 38 kg/m²
Acoustic Performance: 52 dB

Applications:

The GTEC Direct to Timber system is used in both renovation and new-build domestic applications.

Benefits:

  • Only requires boards and screws for rapid installation
  • Combine with fire or sound rated boards for improved ceiling performance
