Mass Barrier Ceilings RCC 060

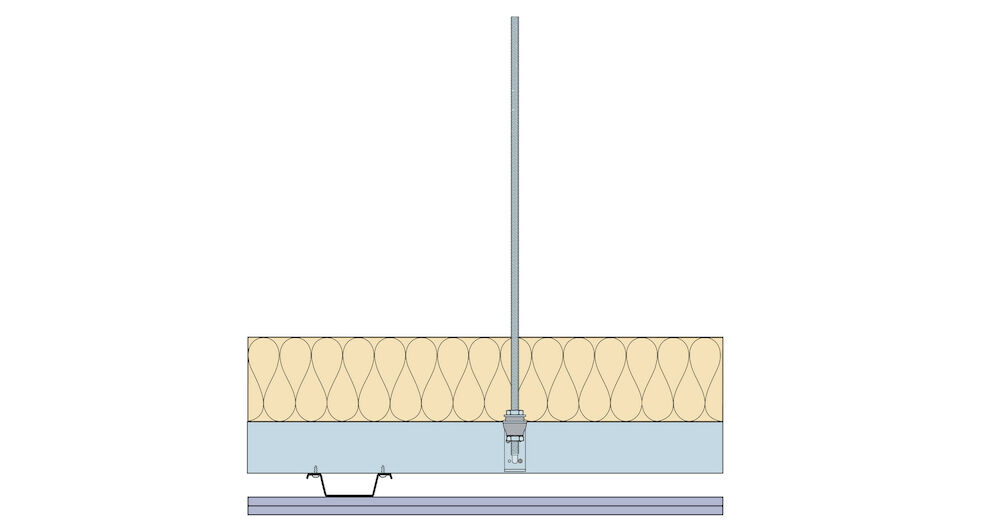

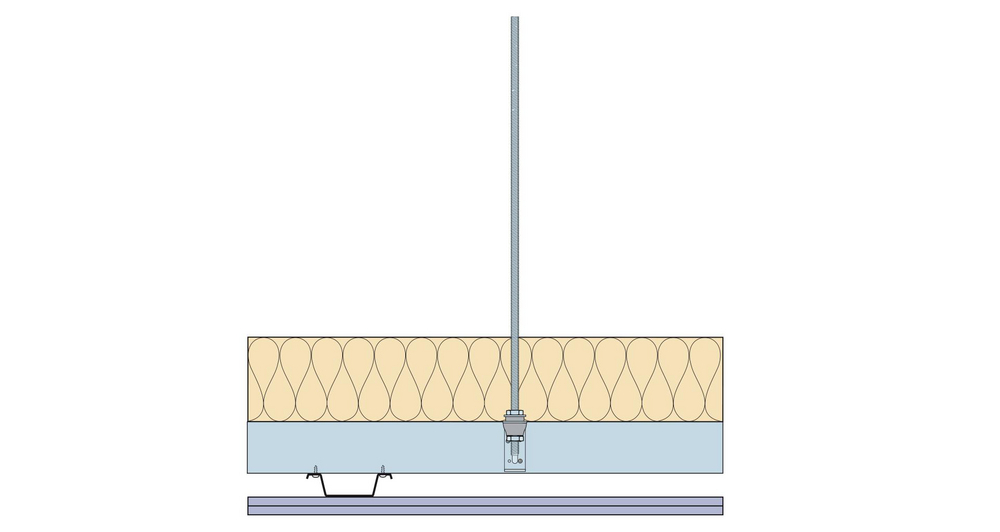

1x 12.5mm GTEC dB Board, 1x 12.5mm GTEC dB Board, GTEC Ceiling Channels at max. 450mm centres Heavy Duty Primary channels UT52/Y at 900mm Centres, Phonissimo Acoustic Hangers as 1200mm Centres, 100mm 10.5kg/m3 glass mineral wool, Any suitable soffit

Further Information
Weight per m²: 30 kg/m²
Fire performance to BS 476-23: 60 min

Application:

GTEC Suspended MF Ceilings are used for commercial applications where services are required below the soffit. For ceilings with enhanced fire and acoustic performance in commercial and residential applications.

Benefits:

  • Variable void depth size for service and insulation requirements
  • Combine with fire or sound rated boards or insulation for improved performance
  • Simple framework makes it easy to build and renovate
  • Creates a continuous flat ceiling surface for ease of decoration and improved aesthetics
