Suspended MF System PGC 003

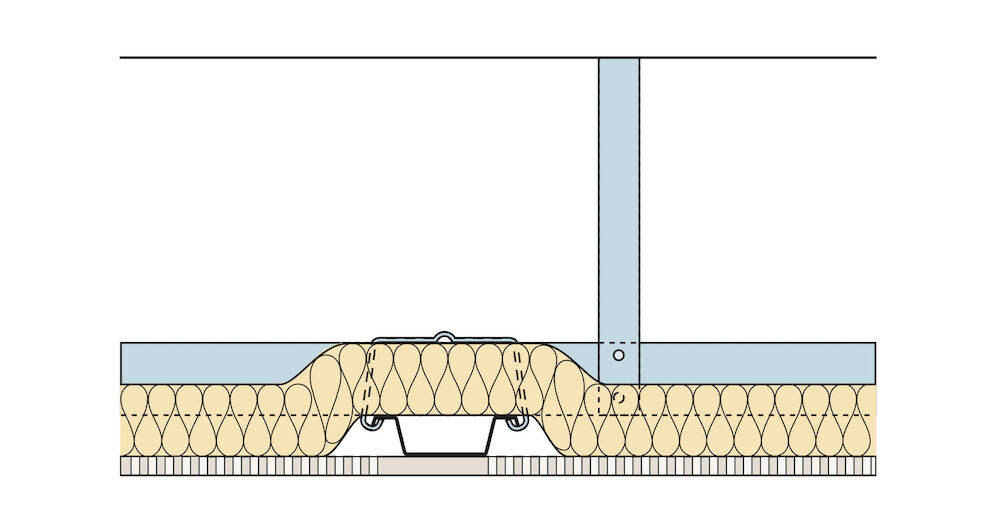

1x Siniat Creason C10no8, GTEC MF Ceiling Channels at Max 450mm centres, GTEC Connecting Clips, 50mm glass mineral wool and 300mm void, Any suitable soffit

Further Information

Sound Absorption Co-Efficient: 0.7
System weight: 12 kg/m²

Applications:

  • GTEC Suspended MF Ceilings are used for commercial applications where services are required below the soffit.* For ceilings with enhanced fire and acoustic performance in commercial and residential applications.

Benefits:

  • Variable void depth size for service and insulation requirements
  • Combine with fire or sound rated boards or insulation for improved performance
  • Simple framework makes it easy to build and renovate
  • Creates a continuous flat ceiling surface for ease of decoration and improved aesthetics
